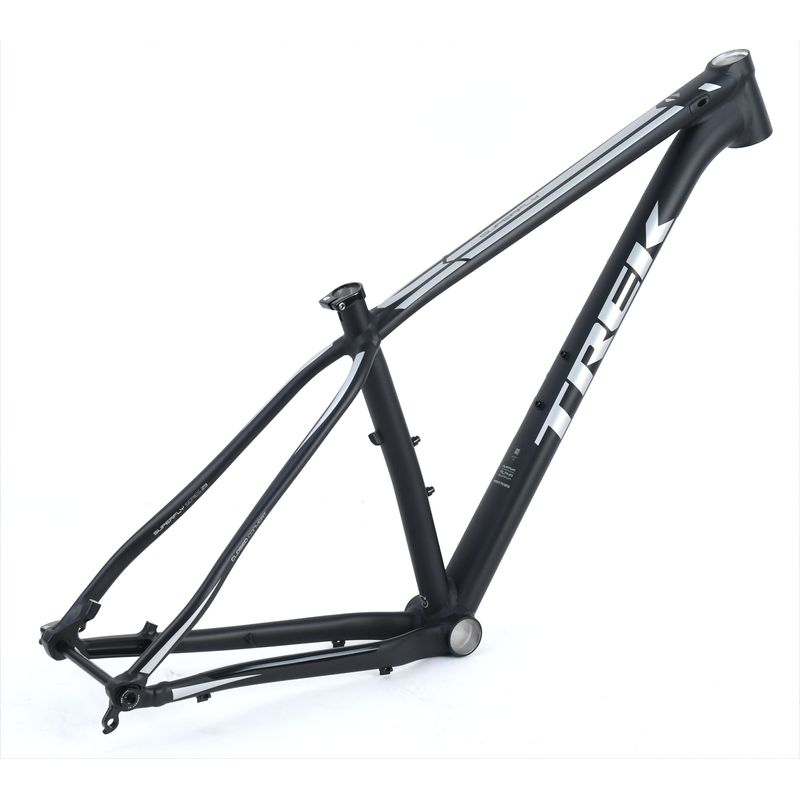

trek mountainbike 2017 2017 Trek Superfly AL Rigid MTB Aluminum Frameset – Wheel & SprocketThe 2017 Trek Superfly AL Rigid Frameset is a lightweight, race ready hardtail platform designed for cross country performance. Constructed from Alpha Platinum Aluminum, this frame offers efficient power transfer, durability, and responsive handlingall while keeping weight low. The geometry is tuned for fast rolling 29er wheels (or 27. 5" SIZE SMALL ), and its designed around a rigid or 100mm suspension fork. With 142x12mm Closed Convert dropouts, a
The 2017 Trek Superfly AL Rigid Frameset is a lightweight, race-ready hardtail platform designed for cross-country performance. Constructed from Alpha Platinum Aluminum, this frame offers efficient power transfer, durability, and responsive handling—all while keeping weight low. The geometry is tuned for fast rolling 29er wheels (or 27.5" SIZE SMALL ), and it’s designed around a rigid or 100mm suspension fork.
With 142x12mm Closed Convert dropouts, a PF89.5 press-fit bottom bracket shell, and internal cable routing, this frameset provides a clean and modern build platform. It accepts a 27.2mm seatpost, features a tapered head tube, and is compatible with post-mount disc brakes. This version is non-Boost, so it's ideal for riders looking to build a high-performance cross-country bike using legacy drivetrain and wheel standards.
This listing includes only what is pictured, including the rear axle and FSA IS-2 integrated headset.
Key Specifications:
-
Model: Trek Superfly AL Rigid Frameset
-
Frame Material: Alpha Platinum Aluminum
-
Fork Compatibility: Rigid or 100mm suspension, tapered steerer
-
Dropouts: 142x12mm thru-axle (Closed Convert, included)
-
Bottom Bracket: PF89.5 press-fit
-
Headset: FSA IS-2, integrated (included)
-
Brake Mount: Post-mount disc
-
Seatpost Diameter: 27.2mm
-
Seat Clamp Diameter: 31.8mm
-
Wheel Size Compatibility: 29" (or 27.5" SIZE SMALL)
-
Rear Spacing: Non-Boost (142mm)
-
Internal Cable Routing: Partial
-
Weight Limit: 300 lbs (136 kg, combined bike/rider/cargo)
Condition:
This is a brand new frameset that includes only what is shown in the photos—frame, rear axle, and headset. Ideal for completing a custom cross-country build.
| Size | Rider Height | Inseam |
|---|---|---|
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" - 5'9") | 79 - 83 cm (31" - 33") |
| ML | 173 - 180 cm (5'8" - 5'11") | 81 - 86 cm (32" - 34") |
| L | 177 - 188 cm (5'10" - 6'2") | 84 - 89 cm (33" - 35") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
| XXL | 195 - 203 cm (6'5" - 6'8") | 91 - 97 cm (36" - 38") |
Geometry Details
| S (15.5") | M (17.5") | ML (18.5") | L (19.5") | XL (21.5") | XXL (23") | |
|---|---|---|---|---|---|---|
| Seat Tube (A) | 36.8 cm | 41.9 cm | 44.4 cm | 47.0 cm | 52.1 cm | 55.9 cm |
| Seat Tube Angle (B) | 73.0° | 72.5° | 72.3° | 72.0° | 72.0° | 72.0° |
| Head Tube Length (C) | 10.0 cm | 10.0 cm | 10.0 cm | 10.0 cm | 12.0 cm | 12.0 cm |
| Head Angle (D) | 69.3° | 69.3° | 69.6° | 69.6° | 69.6° | 69.6° |
| Top Tube (E) | 55.8 cm | 60.2 cm | 62.0 cm | 63.9 cm | 65.9 cm | 67.3 cm |
| Wheelbase (K) | 105.3 cm | 110.3 cm | 111.6 cm | 113.1 cm | 115.2 cm | 116.6 cm |
| Standover (L) | 72.1 cm | 76.5 cm | 77.6 cm | 79.5 cm | 82.3 cm | 84.4 cm |
| Reach (M) | 37.2 cm | 41.2 cm | 42.7 cm | 44.3 cm | 45.7 cm | 47.1 cm |
| Stack (N) | 58.3 cm | 60.0 cm | 60.1 cm | 60.1 cm | 61.9 cm | 61.9 cm |
This frameset is designed for performance and versatility, offering a perfect fit for riders of different heights and body types. Choose your size and enjoy a smooth and efficient ride!
